Aluminium Corrugated Sheet Roof Roll Forming Machine High Speed 10-15m / Min
Summary of Corrugated Sheet Roll Former
1) This corrugated roof sheet roll forming machine adopts coil production material to form sheet profiles through 5 Ton manual decoiler, pinch feeding, main roll forming part, Hydraulic cutting, hydraulic station, PLC control system, and Non-power type support table.
2) The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.
3) Forming Speed: about 0-15 m/min ( excluding cutting time);
Main Technical Specifications
| No. | Item | Parameter | Remark |
| 1 | Suitable Material | Type | PPGI | |
| Width | 1250mm | |
| Thickness | 0.3-1.0mm | |
| Yield Strength | 345Mpa | |
| 2 | Forming Station | 13-20 Stations | Depend on Profile Drawing |
| 3 | Forming Speed | ≈ 0-20m/min Excluding Cutting | |
| 4 | Roller Material | High grade 45# steel | With Hard Chrome |
| 5 | Drive Type | Chain Drive | |
| 6 | Shaft Diameter | Φ75mm | Solid Shaft |
| 7 | Bearing | Hab Bearing | |
| 8 | Cutting Model | Hydraulic Cutting | Stop to cutting |
| 9 | Power Source | Type | 380V/3PH/50HZ | Customized |
| Main Power | ≈ 7.5KW | Depend on profile |
| Hydraulic Power | ≈ 3.0KW | Cutting power |
| 10 | Electric Control System | PLC -PANASONIC | Operation: Screen + Button |
| Inverter -YASKAWA | |
| Touch Screen- MCGS | |
| Encoder- OMRON | |
| 11 | Motor | Changzhou Huiyuan | Chinese Brand |
| 12 | Hydraulic Station | Wuxi Wansheng | Chinese Brand |
| 13 | Hydraulic Valve | HuaDei | Chinese Brand |
Working Flowing Chart
Decoiler --- Fedding Guide --- Roll Forming --- Cut-to-length --- Run out table

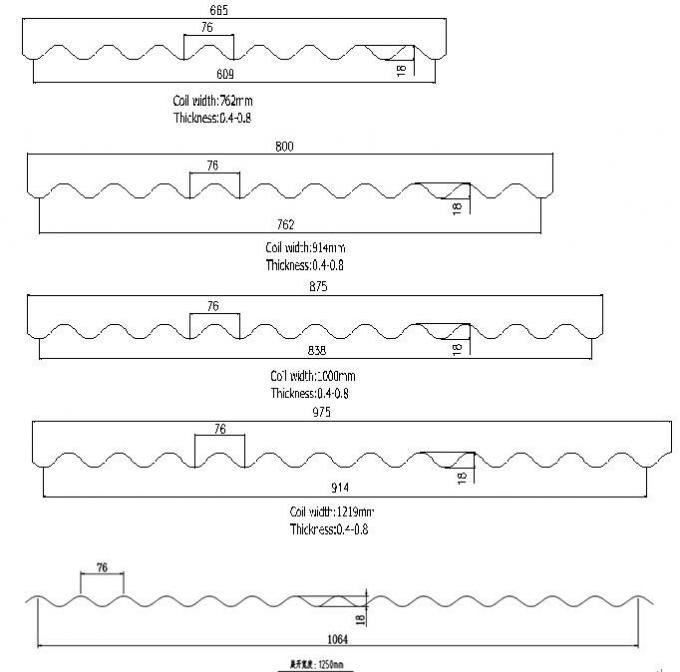

Reference Profile Drawing
Competitive Advantages
- Copra designing software
- 5-8 technicians every month specially do international installation and debugging
- High Quality
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience

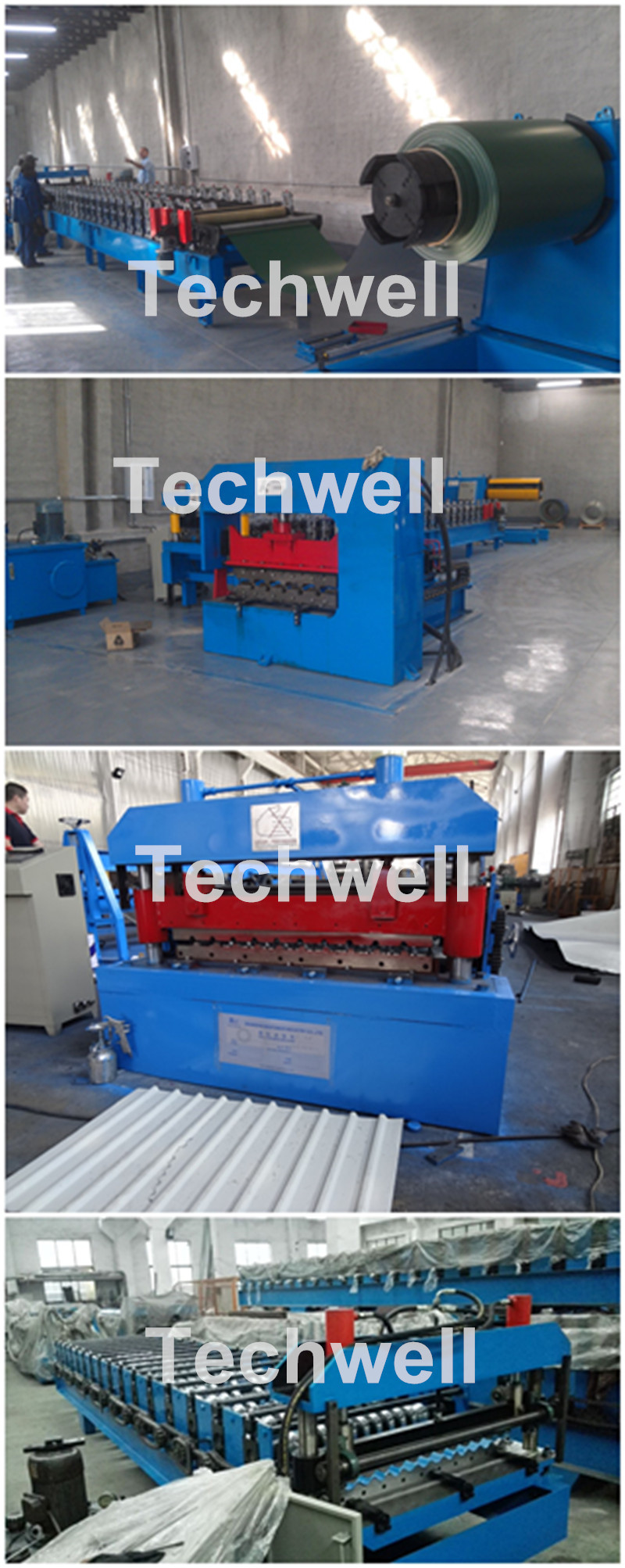

More Machine Pictures
Contacts of WUXI TECHWELL
