Iron Metal Roof Sheet Roll Forming Machine With Manual Or Hydraulic Uncoiler

Place of Origin : China

Brand Name : TECHWELL

Certification : CE

Model Number : TW-RWM

MOQ : 1 Set

Price : Contact Us

Packaging Details : Standard packing

Delivery Time : 55-65 working days

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Thickness : 0.3-0.8mm

Decoiler Coil Width : Max. 1250mm

Forming Stations : 13-18 Stations ( Depend on Profiles )

Roller material : 45# steel

Shaft material : High grade 45# steel

Drive type : Chain transmission

Contact Now

Metal Roof Sheet Roll Forming Machine With 5 ton Manual Or Hydraulic Uncoiler



   A). Main Components of Roof Sheet Roll Forming Machine



 Decoiler / Uncoiler  1 Unit
 Feeding Guide  1 Unit
 Roof Sheet Roll Forming Machine  1 Unit
 Hydraulic Cutting Device                               1 Unit
 Hydraulic Station  1 Unit
 PLC Computer Control Board  1 Unit
 Runout Table  2 Units





   B). Main Specifications of Roof Sheet Roll Forming Machine



1. Model: Roofing Sheet Profile

2. Material: Color Steel, Iron, G.I Coils

3. Material thickness: 0.3-0.8mm

4. Material width: depend on customer’s requirement

5. Decoiler Type: manual or automatical type ( depend on customer’s requirement )

6. Weight Capacity Of Decoiler: 5 Ton

7. Main Motor Power: 7.5 Kw

8. Hydraulic Motor Power: 4.0 Kw

9. 14 Forming Station( depend on profile drawing )

10. Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.

11. Main Axis Material: High grade 45#, quenched and heat treatment.

12. Axis Diameter: ¢ 76mm

13. Working Speed: 0-15 m/min

14. Transporting Type: Chain Transmission

15. Type of Cutting: Hydraulic cutting

16. Material Of Cutting Blade: C r 12

17. Machine Frame stand: Welded structural steel

18. Electrical Control: PLC Frequency Control System with touch screen

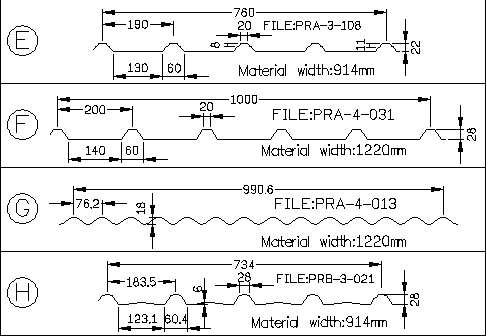

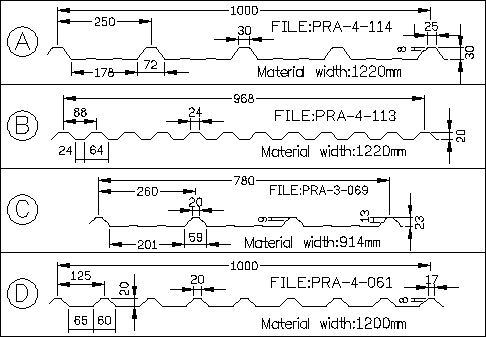

   C). Reference Roof Profile Drawings



Iron Metal Roof Sheet Roll Forming Machine With Manual Or Hydraulic Uncoiler

Iron Metal Roof Sheet Roll Forming Machine With Manual Or Hydraulic Uncoiler





   D). Our Advantages



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience



   E). Reference Machine Pictures of Roof Sheet Roll Forming Machine



Iron Metal Roof Sheet Roll Forming Machine With Manual Or Hydraulic UncoilerIron Metal Roof Sheet Roll Forming Machine With Manual Or Hydraulic Uncoiler
