Color Steel Standing Seam Roll Forming Machine Exported To Ghana TW-33-300

Name: Color Steel Standing Seam Roll Forming Machine Exported To Ghana TW33300
Brand: TECHWELL
Price: 1 USD

Buy cheap Color Steel Standing Seam Roll Forming Machine Exported To Ghana TW-33-300 product

Place of Origin : China

Brand Name : TECHWELL

Certification : CE

Model Number : TW-STM400

MOQ : 1 Set

Price : Contact Us

Packaging Details : Standard packing

Delivery Time : 55-65 working days

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Material Thickness : 0.3-0.8mm

Forming Speed : 0-20 m/min

Forming Station : 11

Motor Power : 5.5KW

Cutting Type : Hydraulic Cutting

Cutting Power : 3KW

Contact Now

Color Steel Standing Seam Roll Forming Machine To Ghana TW-33-300

Technical Specifications of Standing Seam Roll Forming Machine

Coil Material	Thickness	0.3-0.8mm
	Coil width	Custom-made
	Yield Strength	250-350Mpa
	Material	PPGI, Color Steel, GI. Aluminium
Decoiler / Uncoiler	Coil Width	Max. 1250mm, Customized
	I.D	508-610mm
	O.D	Max. 1500mm
Standing Seam Forming Machine	Forming Stations	11 Stations ( Depend on Profiles )
	Roller material	45# steel, surface coated with 0.05mm hard chrome
	Diameter of shaft	76mm
	Shaft material	High grade 45# steel
	Drive type	Chain transmission
	Forming speed	0-15m/min
	Main power	5.5KW
Hydraulic Cutting	Cutting type	Hydraulic cutting
	Cutting power	4KW
	Cutting Tolerance	10m+/-1.5mm
	Encoder	OMRON Brand
Electrical control System	PLC	PANASONIC Brand or Custom-made
	Inverter	YASKAWA Brand or Custom-made
	Touch screen	PANASONICE or Custom-made
	Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Runout Table	Table type	Simple nonpower type
Runout Table	Function	To support the finished panels

Main Components of Standing Seam Roll Forming Machine

Decoiler / Uncoiler	1 Unit
Feeding Guide	1 Unit
Main Standing Seam Roll Forming Machine	1 Unit
Hydraulic Cutting Device	1 Unit
Hydraulic Station	1 Unit
PLC Computer Control Board	1 Unit
Runout Table	2 Units

Process Flow Chart of Standing Seam Roll Forming Machine

Decoiler ---> Fedding Guide ---> Roll Forming ---> Cut-to-length ---> Run out table

Color Steel Standing Seam Roll Forming Machine Exported To Ghana TW-33-300

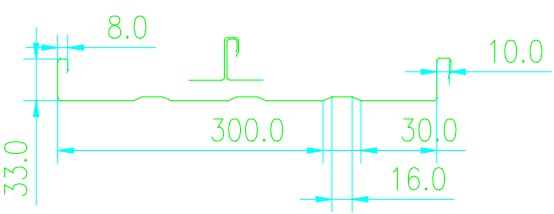

Standing Seam Roof Profile Drawing For Reference

Color Steel Standing Seam Roll Forming Machine Exported To Ghana TW-33-300

Pictures of Standing Seam Roll Forming Machine

Color Steel Standing Seam Roll Forming Machine Exported To Ghana TW-33-300

Contact Us Freely

Company	Wuxi Techwell Machinery Co.,LTD
Website	www.cold-rollformingmachine.com
	www.roofrollformingmachine.com
	www.wxtechwell.com
Video	www.youtube.com/wxtechwell
Tel / Fax	0086-510-83133431
Mobile / Whatsapp / Viber	0086-18018304331 ( Miss Lee )
E-Mail	monica@wxtechwell.com
Skype	monica198614
