High Speed Roof Panel / Roof Sheet Roll Forming Machine With Chain Drive PLC Control

High Speed Roof Panel Roof Sheet Roll Forming Machine With Chain Drive, PLC Control System

   Main Specification

• Material Thickness: 0.3-0.7mm
• Material: Color Steel Coil, PPGI, Yield Strength 350Mpa
• Coil Width: 1250mm
• Forming Roller Stations: 22-24 forming stations
• Diameter of Forming Shaft: 75mm
• Forming Speed: 0-20m/min
• Forming Roller Material: 45# Steel, coated with hard chrome 0.05mm
• Cutter Material: CR12Mov Mold steel, with quench treatment
• Controlling System: PLC with Touch screen & Inverter
• Main Motor Power: 7.5KW
• Cutting Power: 3KW
• Machine Weight: 5500Kgs

 Main Components

• Decoiler ---------------------------------------------- 1 Unit
• Feeding guide -------------------------------------- 1 Unit
• main roll forming machine ------------------------ 1 Unit
• Hydraulic cutting device -------------------------- 1 Unit
• Hydraulic Station ----------------------------------- 1 Unit
• PLC computer control ----------------------------- 1 Unit
• Output table ----------------------------------------- 1 Unit

   Work Flowing

   Decoiler ---> Fedding Guide ---> Roll Forming ---> Cut-to-length ---> Run out table

   Application

   Metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing        sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding

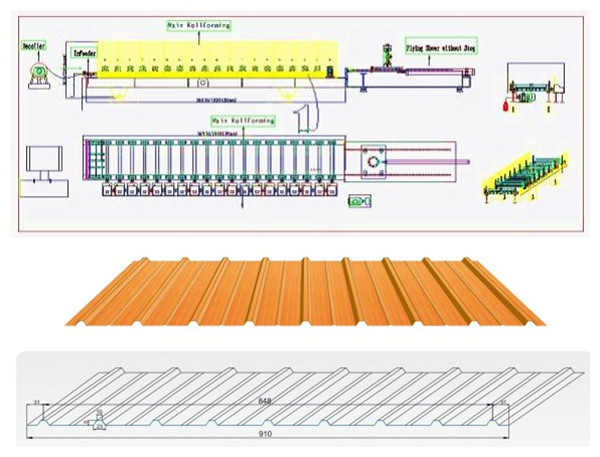

   Reference Drawing

   Advantages

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

   Machine Pictures
