Hi-Rib Roofing Sheet Roll Forming Machine With Panasonic PLC Control System

Name: HiRib Roofing Sheet Roll Forming Machine With Panasonic PLC Control System
Brand: TECHWELL
Price: 1 USD

Buy cheap Hi-Rib Roofing Sheet Roll Forming Machine With Panasonic PLC Control System product

Place of Origin : China

Brand Name : TECHWELL

Certification : CE

Model Number : TW-RWM

MOQ : 1 Set

Price : Contact Us

Packaging Details : Standard packing

Delivery Time : 55-65 working days

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Material Type : PPGI, Aluminium, Color Steel

Material Width : 1250mm

Forming Station : 13-18

Shaft Diameter : 76mm

Roller Material : 45# Steel with Hard Chrome

Cutting Type : Hydraulic Cutting

Contact Now

Hi-Rib Roofing Sheet Roll Forming Machine With Panasonic PLC Control System

Components of Hi-Rib Roofing Sheet Roll Forming Machine

Decoiler / Uncoiler	1 Unit
Feeding Guide	1 Unit
Hi-Rib Roofing Sheet Roll Forming Machine	1 Unit
Hydraulic Cutting Device	1 Unit
Hydraulic Station	1 Unit
PLC Computer Control Board	1 Unit
Runout Table	2 Units

Technical Specifications of Hi-Rib Roof Sheet Roll Forming Machine

Item	Hi-Rib Roofing Sheet Roll Forming Machine
Coil Material	Thickness	0.3-0.8mm
	Coil width	Custom-made, 1000mm or 1200mm or 1250mm
	Yield Strength	250-350 Mpa
	Material	PPGI, Color Steel, GI.
Decoiler / Uncoiler	Decoiler Type	Manual or Hydraulic or Auto Type
	Coil Width	Max. 1250mm
	I.D	508-610mm
	O.D	Max. 1500mm
Hi-Rib Roofing Sheet Roll FormingMachine	Forming Stations	13-18 Stations ( Depend on Profiles )
	Roller material	45# steel, surface coated with 0.05mm hard chrome
	Diameter of shaft	76mm
	Shaft material	High grade 45# steel
	Drive type	Chain transmission
	Forming speed	0-15m/min
	Main power	5.5KW
Cutting	Cutting type	Hydraulic cutting
	Cutting Die Material	Cr12Mov steel, HRC58-62
	Cutting power	3KW
	CuttingTolerance	10m+/-1.5mm
	Encoder	OMRON Brand
Electrical control	PLC	PANASONIC Brand
	Inverter	YASKAWA Brand
	Touch screen	PANASONICE
	Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Runout Table	Table type	Simple nonpower type
Runout Table	Function	To support the finished panels

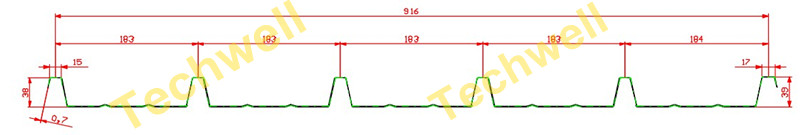

Roof Profile Drawings

Hi-Rib Roofing Sheet Roll Forming Machine With Panasonic PLC Control System

Applications

Trapezoidal roof panel, trapezoidal sheet, trapezoidal roof metal, trapezoidal roofing, metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

Pictures of Hi-Rib Roof Sheet Roll Forming Machine

Hi-Rib Roofing Sheet Roll Forming Machine With Panasonic PLC Control System

Contacts

Company	Wuxi Techwell Machinery Co.,LTD
Website	www.cold-rollformingmachine.com
	www.roofrollformingmachine.com
	www.wxtechwell.com
Video	www.youtube.com/wxtechwell
Tel / Fax	0086-510-83133431
Mobile / Whatsapp / Viber	0086-18018304331 ( Miss Lee )
E-Mail	monica@wxtechwell.com
Skype	monica198614
