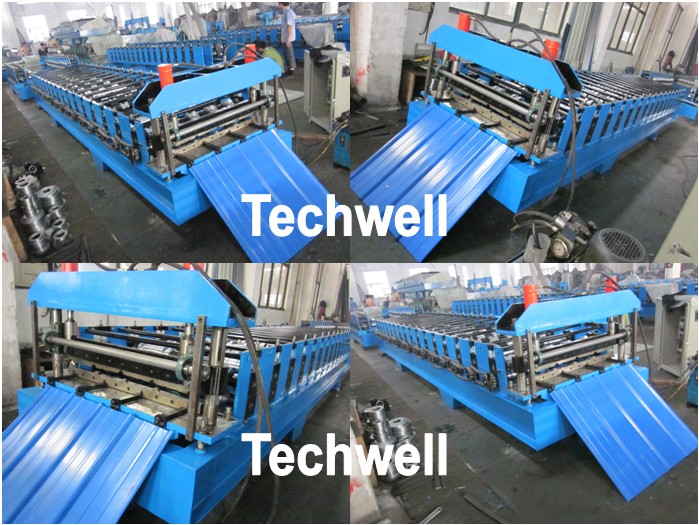

TW-18-228.5-914 Color Steel / Galvanised Roof Roll Forming Machine For 0.3 - 0.8mm Roof Panel

• Model: TW-18-228.5-914 roof profile
• Material thickness: 0.3-0.8mm
• Material width: depend on customer’s requirement
• Decoiler Type: manual or automatical type ( depend on customer’s requirement )
• Weight Capacity Of Decoiler: 5 Ton
• Main Motor Power: 5.5 Kw
• Hydraulic Motor Power: 3 Kw
• Working Speed: 0-15 m/min
• Transporting Type: Chain Drive type
• Heat Treatment of Cutting Blade: HRC 50-60
• Type of Cutting: Hydraulic cutting
• Material Of Cutting Blade: CR12mov
• Heat Treatment of Cutting Blade: HRC 50-60
• Machine Frame stand: Welded structural steel
• Thickmess of Fame Steel: 18mm
• Forming Station: 16 ( depend on profile drawing )
• Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
• Main Axis Material: High grade 45#, quenched and heat treatment.
• Axis Diameter: ¢ 76mm
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: PANASONIC Brand
• Machine Weight: about 5 Ton

   Components of Roof Roll Forming Machine

   Feature of Steel Roof Roll Forming Machine

• This Roof Profile Roll Forming Machine can rollfor roofing panel sheet. After roll formed by this roof roll forming machine, the surface of steel iron metal roof sheet panel is very smooth and beautiful without any scratch on the surface of profile sheets.
• The Roof Sheeting Roll Forming Machine is with fully automatic control system with PLC.
• Length, quantity of sheets is adjustable.
• Rollforming process: Decoiler, Rollforming, Cut to length.
• Easy operation: Key in the length and quantity on the control panel.
• 1 Year warranty, lifelong time service.
• We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.

   Reference Roof  Profile Drawings

    Applications

Galvanised Roofing, Metal roof panel, Metal Roof sheet, trapezoidal roof metal, trapezoidal roofing, metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding
