75mm Roller Diameter, 7.5KW Steel Security Door Frame Roll Forming Machine

75mm Roller Diameter, 7.5KW Steel Security Door Frame Roll Forming Machine


   Main Specifications

• Roll Diameter: 75mm
• Forming Roller stand: 18 Groups
• Main Axis material: First grade 45# steel, heated and quenched
• Roller material of Door Frame Roll Forming Machine: GCr15 Steel, Quenched and heated process
• Forming Speed: 0-10 m/min
• Dive Type: 1.2” Chain of transmission
• Chain Material: 45# steel.
• Machine Frame stand: Welded structural steel
• Machine Base: 36# H steel
• Thickmess of Fame Steel: 18mm
• Main Power: 7.5KW

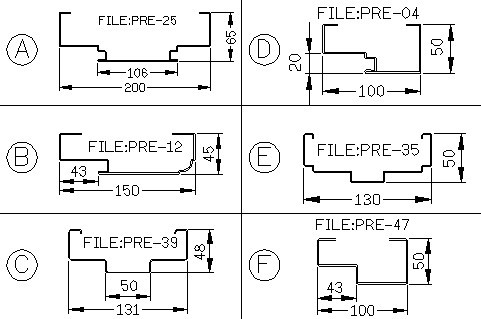

   Door Frame Profile Drawings

   Main Components

• Decoiler ---------------------------------------------- 1 Unit
• Feeding & leveling------------------------------------ 1 Unit
• Main roll forming machine --------------------------- 1 Unit
• Hydraulic punching ----------------------------------- 1 Unit
• Hydraulic cutting device ------------------------------ 1 Unit
• Hydraulic Station ------------------------------------- 1 Unit
• PLC computer control -------------------------------- 1 Unit
• Output table ------------------------------------------ 1 Unit

   Work Flowing

Decoiler----Feeding & Leveling---Roll Forming---Hydraulic Punching---Cut-to-length---Output table

   Our Advantage

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

   Roller  Shutter Door Forming Machine Pictures

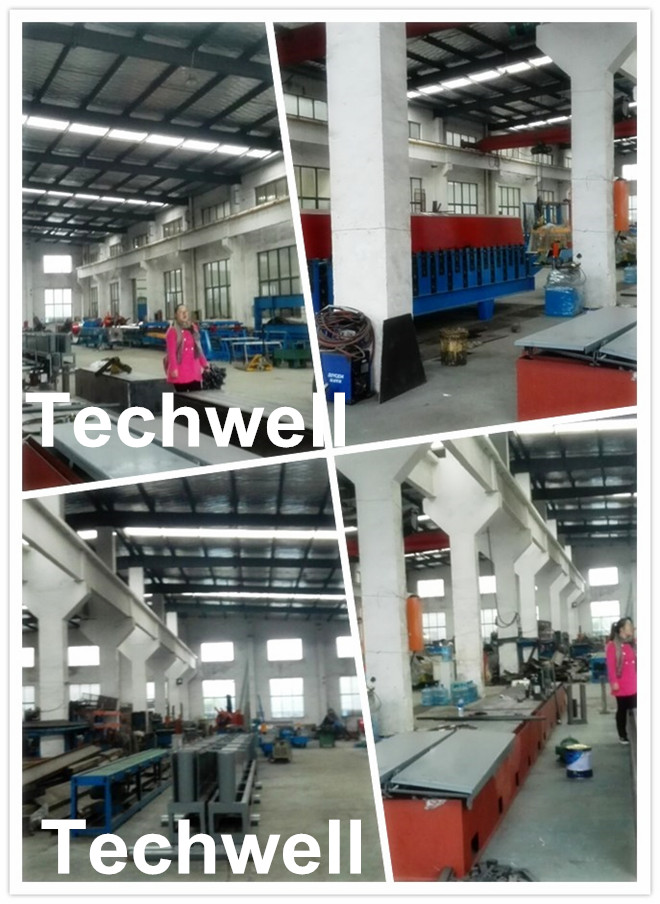

  Factory Pictures

  Certificate
