Polyurethane Foam - Filled Rolling Shutter Roll Forming Machine For Making Door & Window Slats

Name: Polyurethane Foam Filled Rolling Shutter Roll Forming Machine For Making Door amp Window Slats
Brand: TECHWELL
Price: 1 USD

Buy cheap Polyurethane Foam - Filled Rolling Shutter Roll Forming Machine For Making Door & Window Slats product

Brand Name : TECHWELL

Model Number : TW-PURD85

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Contact Us

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Delivery Time : 55-65 working days

Packaging Details : Standard packing

Sheet Material : Aluminum, Galvanized

Coil Thickness : 0.7-1.0mm

Profile Type : 39 / 42 / 45 / 55 / 65 / 77mm

Cutting Type : Servo Tracking Flying-Saw Cutting

Cutting Power : 2.2KW

Forming Speed : 0-15m/min

Contact Now

Polyurethane Foam-Filled Rolling Shutter Roll Forming Machine For Making Door & Window Slats

Summary of PU Foam Roller Shutter Machine

This roll forming machine is for producing aluminum shutter door & window slats with foam-filled, Our Roll-forming lines complete with the tooling suitable to produce the foamed rolling shutter profiles in different sizes, inline foaming, punching and cutting to length operations. Lines for high density or low density foamed profiles.

Main Specifications of PU Foam Rolling Shutter Door Slat Machine

Item	PU Foam Roller Shutter Door Slat Machine
Coil Material	Material Thickness	0.7-1.5mm
	Coil Width	Customized
	Yield Strength	G250-350Mpa
	Coil Material	Aluminum, GI. or Carbon Steel
Decoiler / Uncoiler	Decoiler Type	Manual or Hydraulic or Auto Type
	Coil Width	Max. 1250mm
	I.D	508-610mm
	O.D	Max. 1500mm
PU Foam Roller Shutter Machine	Forming Stations	About 34 Stations (Depend on profiles)
	Roller Material	High grade GCr15
	Diameter of Shaft	40mm or 50mm
	Shaft Material	High grade 45# steel with heat treatment
	Drive Type	Gearbox drive
	Forming Speed	0-15m/min
	Main Power	7.5KW
Foaming Machine	With two group " ISO / POLY "
Foaming Machine	Low-pressure foamin machine
Straighten Device	To straighten the profile
Pneumatic Punching Machine	Material of Cutter	Cr12Mov, quenched HRC58-62
Pneumatic Punching Machine	Continuous Punching
Servo Tracking Flying Saw Cutting	Servo Tracking Fly-saw cuting
	Servo Power	1.5KW
	Cutting Power	2.2KW
PLC Control System	PLC	PANASONIC Brand
	Inverter	YASKAWA Brand
	Touch Screen	PANASONICE
	Operation Type	Touch screen & Button
Support Table	Table Type	Simple nonpower type
Support Table	Function	To support the finished panels

Main Components

Decoiler / Uncoiler	1 Unit
Feeding Guide	1 Unit
Main Roll Forming Machine	1 Unit
Heating Device	1 Unit
PU Injection Foaming Machine	1 Unit
Pneumatic Tracking Punching	1 Unit
Servo Flying-saw Cutting	1 Unit
PLC Electrical Control Board	1 Unit
Run out Support Table	1 Unit

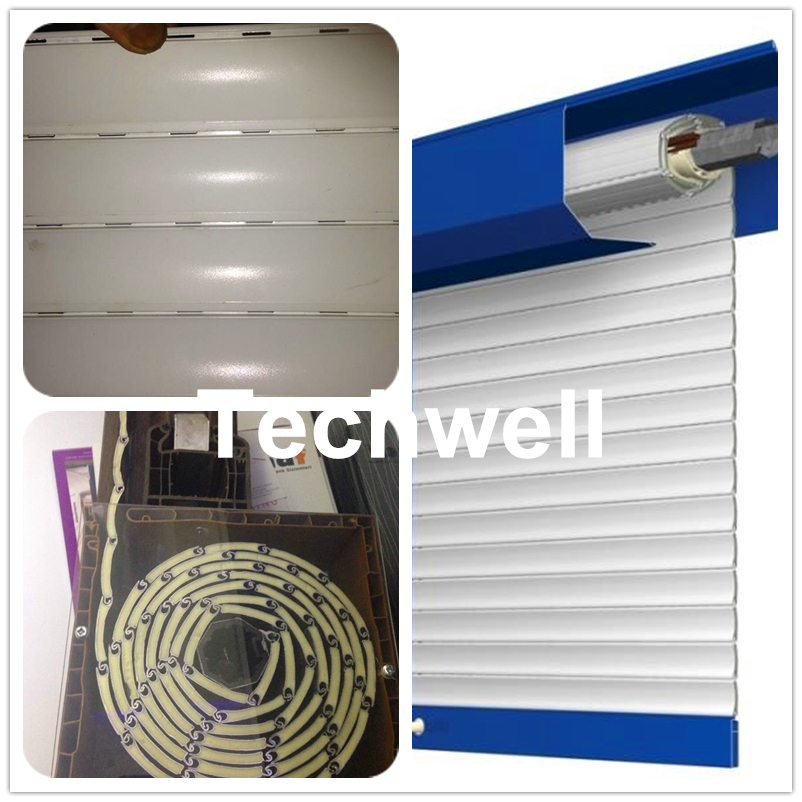

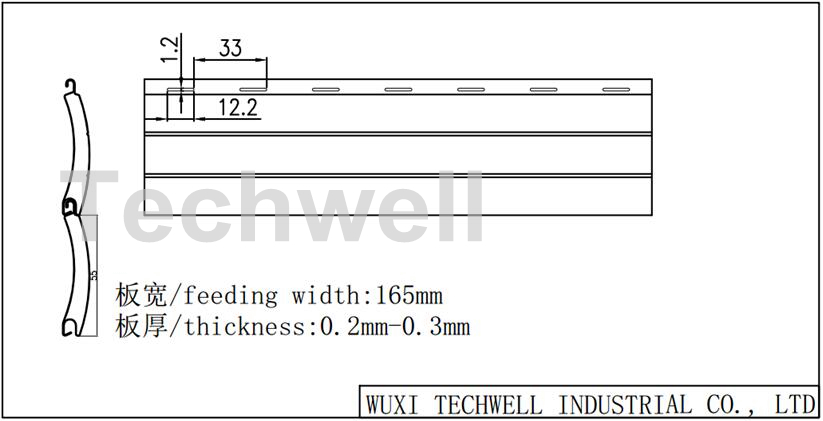

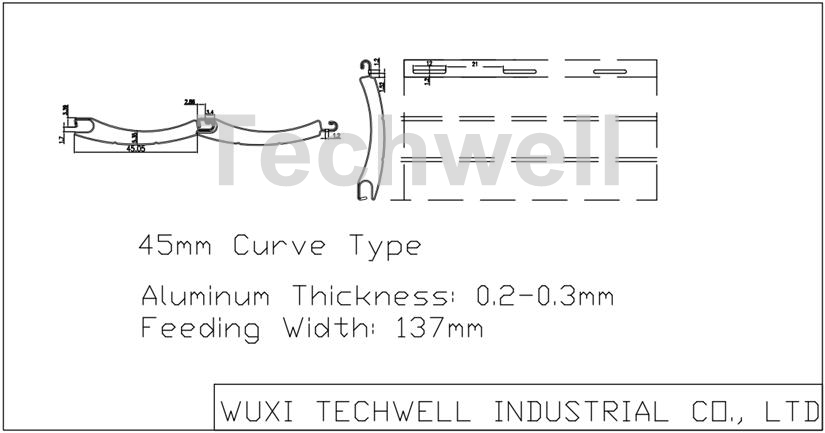

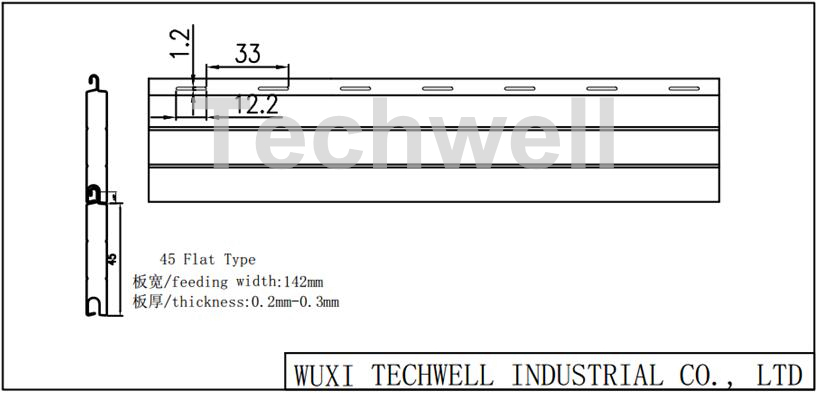

PU Foam Roller Shuttter Slat Profiles

Polyurethane Foam - Filled Rolling Shutter Roll Forming Machine For Making Door & Window Slats

Layout of PU Foam Roller Shutter Slat Machine

Manual Decoiler --- Feeding Guide --- Roll Forming --- PU Foam Injection Machine --- Straighten Device --

- Pneumatic Punching --- Servo Flying-saw Cutting --- Run out Tables

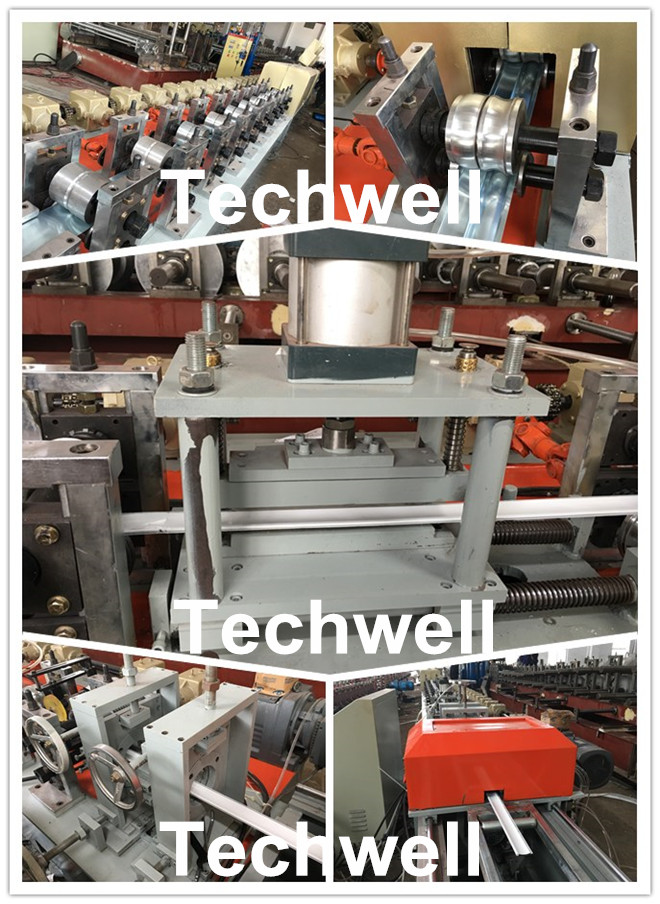

More Pictures of PU Foam Roller Shutter Slat Machine
