39 / 42 / 45 / 55 / 65 / 77mm PU Foam Roller Shutter Door Slat Roll Forming Machine With Servo Flying Saw Cutting

39 / 42 / 45 / 55 / 65 / 77mm PU Foam Roller Shutter Door Slat Roll Forming Machine With Servo Flying-Saw Cutting

   A). PU Foam Roller Shutter Slat Profiles / Finished Slat Pieces

   B). Main Specifications of PU Foam Rolling Shutter Door Slat Machine

Dri

1. Sheet Material: Aluminum
2. Sheet Thickness: 0.2-0.35mm
3. Covered Width: 39mm / 42mm / 45mm / 55mm / 65mm / 77mm
4. Decoiler: Manual Decoiler
5. Capacity of Decoiler: 2 Ton
6. Forming Speed: 0-15m/min
7. Drive Type: Gearbox Drive
8. Forming Station: approx. 37 stations
9. Shaft Diameter: 40mm or 50mm
10. Shaft Material: High grade 45# steel with heat treatment
11. Main Power: 7.5KW
12. Punching: Pneumatic type punching
13. Cutting Type: Servo Tracking Flying-Saw Cutting
14. Cutting Power: 2.2KW
15. Servo Motor Power: 1.5KW
16. PU Foaming Machine: with TWO group " ISO / POLY "
17. Main Machine Dimension: approx. 24m * 1.2m * 1.2m ( L * W * H )

   C). Layout of PU Foam Roller Shutter Salt Making Machine

Shee

   C). Main Components

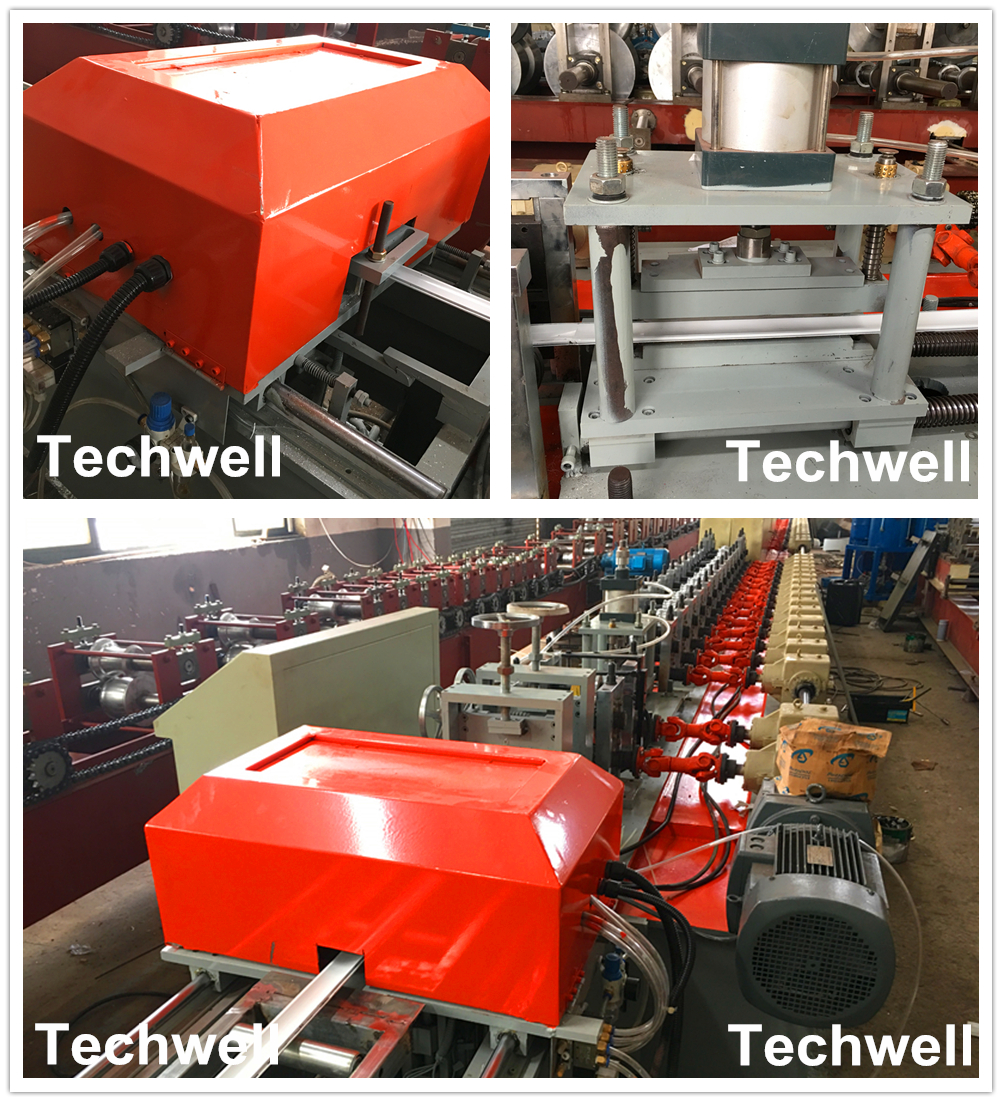

   D). More Pictures of PU Foam Roller Shutter Door Slat Machine

   E). Contacts of WUXI TECHWELL
