IBR Sheet / Sheeting Making Machine With PLC Frequency Control System

Name: IBR Sheet Sheeting Making Machine With PLC Frequency Control System
Brand: TECHWELL
Price: 1 USD

Buy cheap IBR Sheet / Sheeting Making Machine With PLC Frequency Control System product

Place of Origin : China

Brand Name : TECHWELL

Certification : CE

Model Number : TW-RWM

MOQ : 1 Set

Price : Contact Us

Packaging Details : Standard packing

Delivery Time : 55-65 working days

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Material : PPGI, Color Steel, GI.

Yield strength : 250-350 Mpa

Decoiler type : Manual or Hydraulic or Auto Type

Roller material : 45# steel, surface coated with 0.05mm hard chrome

Shaft material : High grade 45# steel

Forming speed : 0-15m/min

Contact Now

IBR Sheet / Sheeting Making Machine With PLC Frequency Control System

Composition of IBR Sheet Making Machine

Decoiler / Uncoiler	1 Unit
Feeding Guide	1 Unit
IBR Sheet Making Machine	1 Unit
Hydraulic Cutting Device	1 Unit
Hydraulic Station	1 Unit
PLC Computer Control Board	1 Unit
Runout Tables	2 Units

Characteristic of IBR Sheet Forming Machine

This IBR Sheet Making Machine can rollform metal ibr roofing sheet. After roll formed by this IBR sheet forming machine, the surface of metal ibr roofing is very smooth and beautiful without any scratch on the surface of roofing sheets.
The IBR Sheet Roll Forming Machine is with fully automatic control system with PLC.
Easy operation: Key in the length and quantity on the control panel.
We also can do a custom roll forming machine, we can design machine according to your specifications and profile drawings.

Main Specifications of IBR Sheet Making Machine

Item	IBR Sheet Forming Machine
Coil Material	Thickness	0.3-0.8mm
	Coil width	Custom-made, 925mm or 940mm
	Yield Strength	250-350 Mpa
	Material	PPGI, Color Steel, GI.
Decoiler / Uncoiler	Decoiler Type	Manual or Hydraulic or Auto Type
	Coil Width	Max. 1250mm
	I.D	508-610mm
	O.D	Max. 1500mm
IBR Sheet Forming Machine	Forming Stations	18 Stations ( Depend on Profiles )
	Roller material	45# steel, surface coated with 0.05mm hard chrome
	Diameter of shaft	76mm
	Shaft material	High grade 45# steel
	Drive type	Chain transmission
	Forming speed	0-15m/min
	Main power	5.5KW
Cutting Device	Cutting type	Hydraulic cutting
	Cutting Die Material	Cr12Mov steel, HRC58-62
	Cutting power	3KW
	CuttingTolerance	10m+/-1.5mm
	Encoder	OMRON Brand
Electrical Control System	PLC	PANASONIC Brand
	Inverter	YASKAWA Brand
	Touch screen	PANASONICE
	Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Runout Table	Table type	Simple nonpower type
Runout Table	Function	To support the finished panels

Reference IBR Drawings

IBR Sheet / Sheeting Making Machine With PLC Frequency Control System

Applications

IBR Sheets, IBR Roofing, IBR Sheeting, IBR Roof Panel, Trapezoidal roof panel, trapezoidal sheet, trapezoidal roof metal, trapezoidal roofing, metal roof; steel roof; metal roof wall panel; steel roof wall panel; metal roofing sheet; steel roofing sheet; metal roof panel; steel roof panel; roof wall cladding; roof cladding; wall cladding

Our Advantage

High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

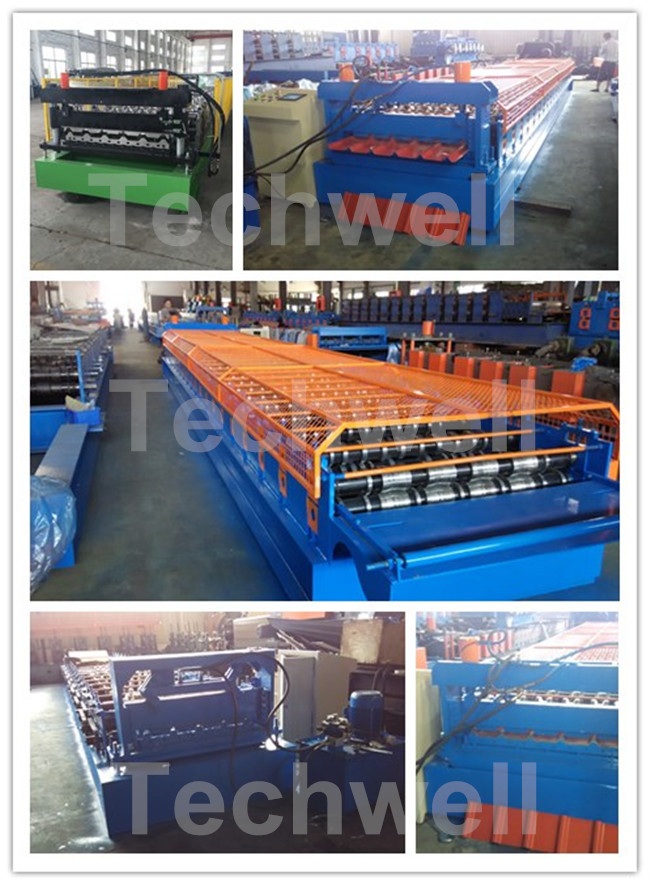

IBR Sheet Forming Machine Pictures

IBR Sheet / Sheeting Making Machine With PLC Frequency Control System

Machine to Container

IBR Sheet / Sheeting Making Machine With PLC Frequency Control System
