Metal Roofing Sheet Roll Forming Machine, Roofing Sheet Making Machine With 20 Forming Stations

Name: Metal Roofing Sheet Roll Forming Machine Roofing Sheet Making Machine With 20 Forming Stations
Brand: TECHWELL
Price: 1 USD

Buy cheap Metal Roofing Sheet Roll Forming Machine, Roofing Sheet Making Machine With 20 Forming Stations product

Place of Origin : China

Brand Name : TECHWELL

Certification : CE

Model Number : TW-RWM

MOQ : 1 Set

Price : Contact Us

Packaging Details : Standard packing

Delivery Time : 55-65 working days

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Material Thickness : 0.3-0.8mm

Main Motor Power : 5.5Kw

Hydraulic Station Power : 3Kw

Shaft Diameter : 76mm

Working Speed : 0-15m/min

Material of Cutting Blade : Cr12

Contact Now

Metal Roof Sheet Roll Forming Machine, Roofing Sheet Making Machine With 20 Forming Stations

Summary of Roof Sheet Roll Forming Machine

Material thickness: 0.3-0.8mm
Material width: depend on customer’s requirement
Main Motor Power: 5.5 Kw
Hydraulic Motor Power: 3 Kw
Forming Station of Roofing Sheet Roll Forming Machine : 13-20 ( depend on profile drawing )
Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
Main Shaft Material: High grade 45#, quenched and heat treatment.
Shaft Diameter: ¢ 76mm
Working Speed: 0-15 m/min
Drive Type: Chain Transmission
Type of Cutting: Hydraulic cutting
Material Of Cutting Blade: C r 12
Machine Frame stand: Welded structural steel
Thickmess of Fame Steel: 18mm
Electrical Control: PLC Frequency Control System with touch screen
PLC: PANASONIC Brand
Encoder: OMRON Brand
Transducer: PANASONIC Brand
Machine Weight: about 5 Ton

Maintenance of Metal Roofing Sheet Roll Forming Machine

Daily maintenance plays an very importance role in extending the operation time and of roofing sheet roll forming machine and the good quality finished metal roofing sheets. The following points should be part of the machine's daily production and usage routine.

1. Regularly lubricated the outside parts of the metal roofing sheet roll forming machine, such as the driving chain...

2. Regularly brush the surface of roller, particularly when working outside. If you do not use the roofing sheet making machine in a long time, you should apply luricating oil on the roller surface, make sure you clean it for next time running machine.

3. If the Trapezoidal roofing sheet roll forming machine is not operated in a long period, should cover it with plastic film, to avoid getting rain or dust on the machine, or avoid the machine becoming dampt, especially the PLC electric control board.

4. Make sure the cutting system is lubricated when necessary.

5. Check the Hydraulic station often and the oil quantity of the deceleration machines, add more oil if the oil level is low.

6. Check the electric appliances box and every leads conjuction circumstance of the roofing sheet making machine.

Main Components of Roofing Sheet Making Machine

Decoiler / Uncoiler	1 Unit
Feeding Guide	1 Unit
Metal Roofing Sheet Making Machine	1 Unit
Hydraulic Cutting System	1 Unit
Hydraulic Station	1 Unit
PLC Computer Control Box	1 Unit
Support Tables	2 Units

Reference Roofing Drawings

Metal Roofing Sheet Roll Forming Machine, Roofing Sheet Making Machine With 20 Forming Stations

Our Advantage

High Quality
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

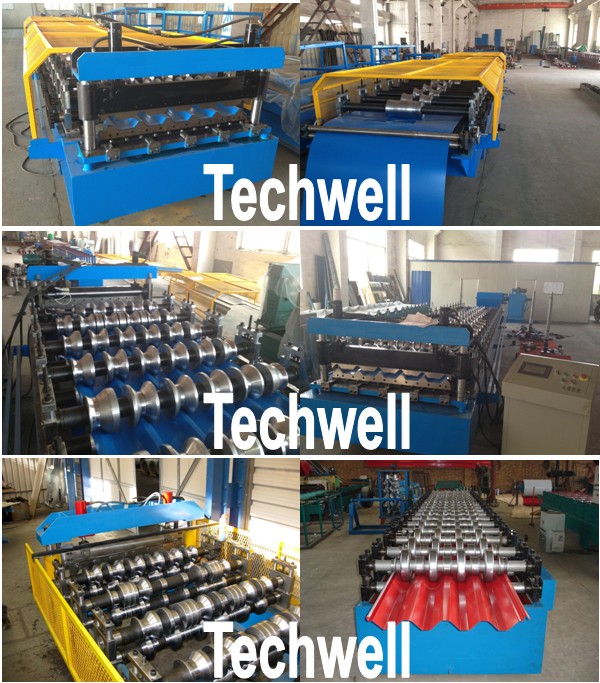

Roofing Sheet Making Machine Pictures

Metal Roofing Sheet Roll Forming Machine, Roofing Sheet Making Machine With 20 Forming Stations
