Guide Rail Roll Forming Machine For Making Elevator , Doorframe , Window Frame As Well As Other Sliding System Devices

Name: Guide Rail Roll Forming Machine For Making Elevator Doorframe Window Frame As Well As Other Sliding System Devices
Brand: TECHWELL
Price: 1 USD

Buy cheap Guide Rail Roll Forming Machine For Making Elevator , Doorframe , Window Frame As Well As Other Sliding System Devices product

Brand Name : TECHWELL

Model Number : TW-GDA008

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Contact Us

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Delivery Time : 55-65 working days

Packaging Details : Standard packing

Coil Material : Galvanized Steel or Carbon Steel

Coil Thickness : 1.5-3.0mm

Forming Speed : 0-15m/min

Working Stations : About 16 Stations

Axis Diameter : 80mm

Cutting Type : Saw Cutting

Contact Now

Guide Rail Roll Forming Machine For Making Elevator, Doorframe, Window Frame As Well As Other Sliding System Devices

Description of Guide Rail Roll Forming Machine

The guide rail roll forming machine rezlizes punching and lettering functions as requested by customers. The finished guide rails are commonly seen in elevator, doorframe, window frame, curtain track, electrical wiring trough as well as other devices that need sliding system.

Processing Flow

Decoiler --- Feeding and Leveling --- Main Roll Forming --- Hydraulic Punching --- Cut-to-length --- Run-out

Table

Guide Rail Roll Forming Machine For Making Elevator , Doorframe , Window Frame As Well As Other Sliding System Devices

Main Specifications

Item	Guide Rail Roll Forming Machine
Coil Material	Thickness	1.5-3.0mm
	Coil Width	Custom-made
	Yield Strength	250-350Mpoa
	Material	PPGI, Color Steel, GI.
Decoiler / Uncoiler	Decoiler Type	Manual or Hydraulic or Auto Type
	Coil Width	Max. 1250mm
	I.D	508-610mm
	O.D	Max. 1500mm
Guide Rail Roll Forming Machine	Forming Stations	About 16 stations (Depend on profiles)
	Roller Material	GCr15 steel, surface coated with 0.05mm hard chrome
	Diameter of Shaft	80mm
	Shaft Material	High grade 45# steel
	Drive Type	Chain drive
	Forming Speed	0-15m/min
	Main Power	18KW
Punching Device	Punching Type	Hydraulic punching
	Punching Mold Size	According to drawing
	Hydraulic Power	5.5KW
Cutting Device	Cutting Type	Disk saw cutting
	Cutting Die Material	Cr12Mov
	Cutting Tolerance	+/-1.5mm
Electrical Control Box	PLC	PANASONIC Brand
	Inverter	YASKAWA Brand
	Touch Screen	PANASONIC
	Operation Type	Touch screen & Button
Support Table	Table Type	Simple non-power type
Support Table	Function	To support the finished panels

Main Components

Decoiler / Uncoiler	1 Unit
Feeding & Leveling	1Unit
Main Roll Forming	1 Unit
Punching Device	1Unit
Cutting	1Unit
Hydraulic Station	1 Unit
PLC Electrical Control Board	1 Unit
Out put Tables	1 Unit

Guide Rail Roll Former Reference Drawing

Guide Rail Roll Forming Machine For Making Elevator , Doorframe , Window Frame As Well As Other Sliding System Devices

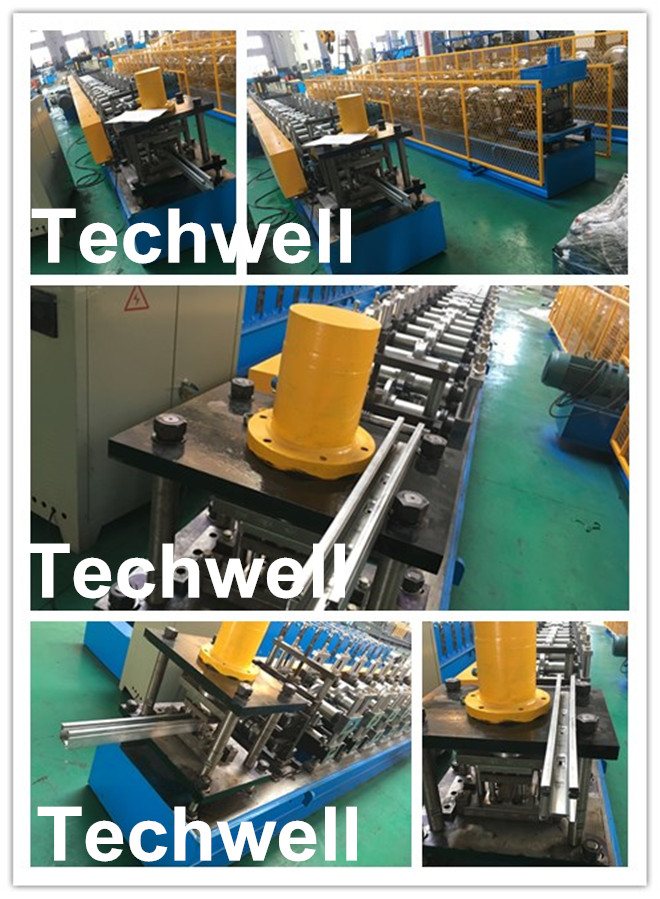

More Machine Pictures

Guide Rail Roll Forming Machine For Making Elevator , Doorframe , Window Frame As Well As Other Sliding System Devices

Contacts of WUXI TECHWELL

Company	Wuxi Techwell Machinery Co.,LTD
Website	www.cold-rollformingmachine.com
	www.roofrollformingmachine.com
	www.wxtechwell.com
Mobile	0086-15861597732( Lemon )
E-Mail / Skype	sales@wxtechwell.com
