Double Layer Roof Wall Panel Cold Roll Forming Machine for Two Different Roof Panels

Place of Origin : China

Brand Name : TECHWELL

Certification : CE

Model Number : TW-DLM

MOQ : 1 Set

Price : Contact Us

Packaging Details : Standard packing

Delivery Time : 55-65 working days

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Profile Type : Roof Wall Panel Profiles

Material Thickness : 0.35-0.8mm

Forming Station : 13-24, depend on profile

Shaft Diameter : 76mm

Roller Material : High Grade 45# Steel with Hard Chrome

Main Power : 7.5KW

Contact Now



Double Layer Roof Wall Panel Cold Roll Forming Machine for Two Different Roof Panels




   Technical Data of Double Layer Roof Wall Panel Roll Forming Machine





Coil Material

Thickness 0.35-0.8mm
Coil width Custom-made
Yield Strength 250-350Mpa
Material PPGI, Color Steel, GI.
Decoiler / Uncoiler Coil Width Max. 1250mm
I.D 508-610mm
O.D Max. 1500mm
Roll Forming Machine Forming Stations 13-24 Stations ( Depend on Profiles )
Roller material   45# steel, surface coated with 0.05mm      hard chrome
Diameter of shaft 76mm
Shaft material High grade 45# steel
Drive type Chain transmission
Forming speed      0-15m/min
Main power 7.5KW
Cutting Cutting type Hydraulic cutting
Cutting power 3KW
Cutting Tolerance     10m+/-1.5mm
Encoder OMRON Brand
Electrical control PLC PANASONIC Brand or Custom-made
Inverter YASKAWA Brand or Custom-made
Touch screen MCGS Brand or Custom-made
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Runout Table Table type Simple nonpower type
Function To support the finished panels





   Working Flow Chart of Double Layer Roof Wall Panel Roll Forming Machine





Decoiler ---> Fedding Guide ---> Roll Forming ---> Cut-to-length ---> Run out table





   Components of Double Layer Roof Roll Forming Machine





Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Main Roll Forming Machine 1 Unit
Hydraulic Cutting Device 1 Unit
Hydraulic Station 1 Unit
PLC Computer Control Board 1 Unit
Runout Table 2 Units

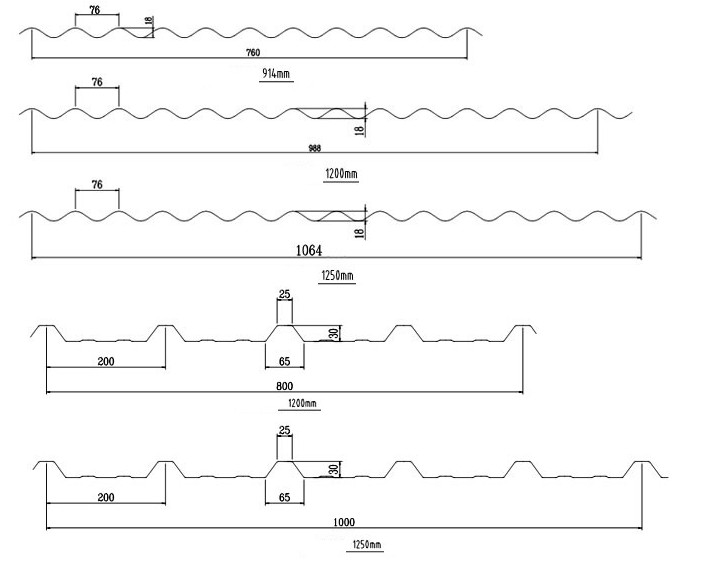

   Reference Roof Wall Panel Profile Drawings





Double Layer Roof Wall Panel Cold Roll Forming Machine for Two Different Roof Panels



   TECHWELL Advantage



  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

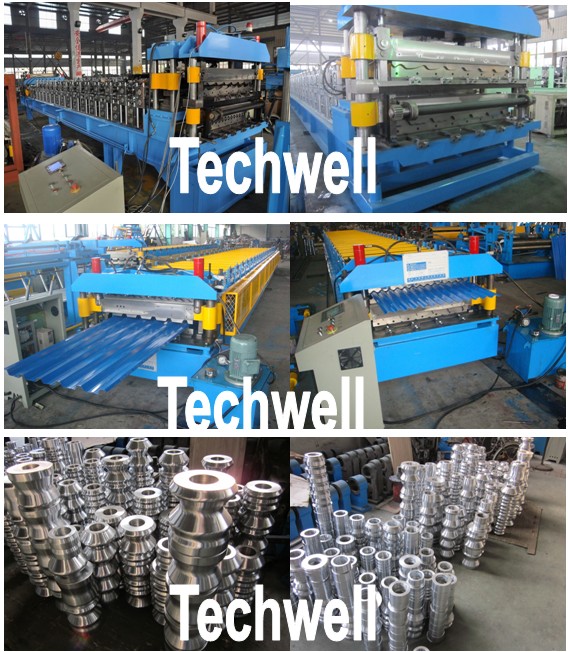

   Photos of Double Layer Roof Wall Panel Roll Forming Machine





Double Layer Roof Wall Panel Cold Roll Forming Machine for Two Different Roof Panels



Double Layer Roof Wall Panel Cold Roll Forming Machine for Two Different Roof Panels

Double Layer Roof Wall Panel Cold Roll Forming Machine for Two Different Roof Panels

Double Layer Roof Wall Panel Cold Roll Forming Machine for Two Different Roof Panels
