1.6mm Beam Rack Roll Forming Machine With Spot Welding Gearbox Driving

Brand Name : TECHWELL

Model Number : TW-Beam80

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Contact us

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 10sets

Delivery Time : 70-80 working days

Packaging Details : Standard packing

Material : GI or carbon steel

Material Thickness : 1.2-1.6mm

Profile size : adjustable

Forming Stations : 23 Stations

Work Speed : 0-15m/min

Cutting type : flying cutting

Welding type : Sport Welding

Drive type : Gearbox driving

Contact Now

Pallet Rack Step Beam Roll Forming Machine Line is for producing rack P step beams, and also called cross beams for storage warehouse pallet rack shelving system.

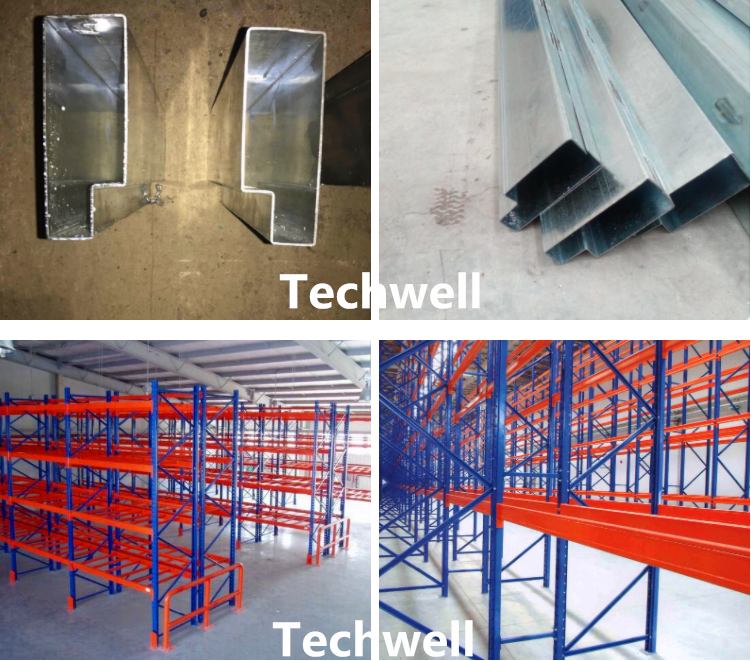

    Introduction of Rack Beam



The Step Beam or Cross beam support the pallet racks to assure the racks have adequate supports for the wieght of the products stored on them, ensuring the racks do not bow or create an unsafe condition. The racking beams manufactured by our rack beam roll forming machines are availabe in multiple length and also with different dimensions of beams suitable for almost any warehouse layout and products. The right beams allow you to store goods safely and securely while allowing complete accessibility for the material handling equipments.

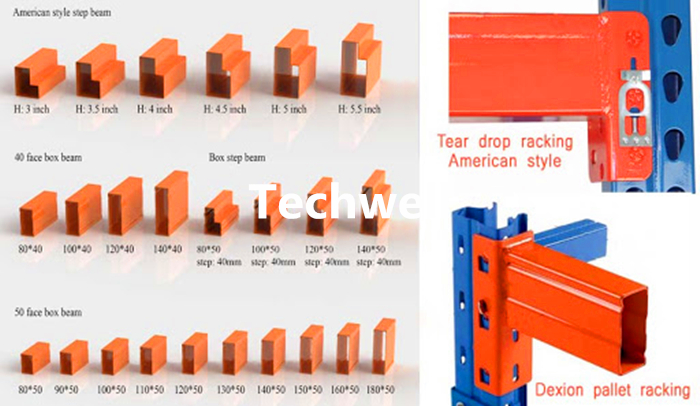

    Step Beam Profiles



1.6mm Beam Rack Roll Forming Machine With Spot Welding Gearbox Driving



   The Working Flow of Step Beam Forming Machine



Uncoiler --> Feeding & Leveling --> Roll Forming --> Servo Tracking Spot Welding --> Flying Saw Cutting --> Run-out Tables



   Main Specifications of Upright Rack Roll Forming Machine

  • Material thickness: 1.2-1.6mm
  • Material type: Carbon steel
  • Roller stations: 23 stations
  • Roller material: GCr15, HRC58-60
  • Shaft material: 40Cr
  • Forming speed: 0-15m/min
  • Main motor power: 30Kww
  • Fly saw cutting power: 18.5Kw
  • PLC control panel: Panasonic


    Main Components of Upright Rack Production Line



 Hydraulic Decoiler  1 Unit
 Leveling  1 Unit
 Main Roll Forming Machine  1 Unit
 Welding Device  1 Unit
 Flying Saw Cutting  1 Unit
 Electric Control System  1 Unit
 Run out Table  1 Unit

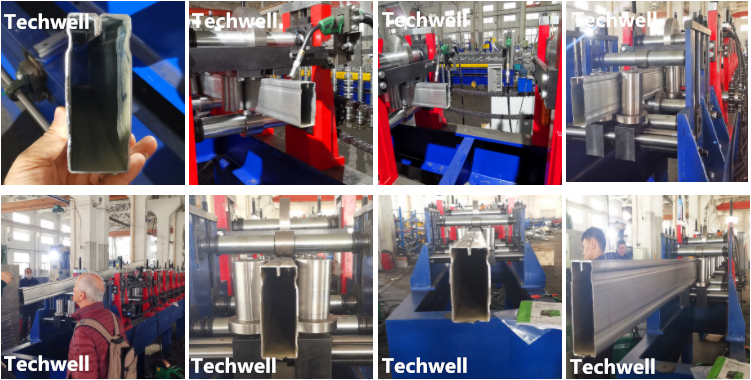

   More Upright Rack Forming Machine Pictures



1.6mm Beam Rack Roll Forming Machine With Spot Welding Gearbox Driving

1.6mm Beam Rack Roll Forming Machine With Spot Welding Gearbox Driving
