18 Groups Station 22.5KW Rack Beam Roll Forming Machine / Cable Tray Forming Machine

  • 1
  • 2

Place of Origin : China

Brand Name : TECHWELL

Certification : CE

Model Number : TW-RACK

MOQ : 1 Set

Price : Contact Us

Packaging Details : Standard packing

Delivery Time : 70-80 working days

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 10 sets

Contact Now




18 Groups Station 22.5KW Rack Beam Roll Forming Machine / Cable Tray Forming Machine





  Main Specifications Of Rack Beam Roll Forming Machine





  • Material Thickness:1.8-2.3mm
  • Total Power: 22.5KW
  • Dimension of Rack Beam Roll Forming Machine: about 13500mmx1200mmx1300mm
  • Weight of machine: about 13 Ton
  • Roll Diameter: 75mm
  • Forming Roller stand: 18 Groups
  • Main Axis material: First grade 45# steel, heated and quenched
  • Roller material: GCr15 Steel, Quenched and heated process
  • Forming Speed: 12-15 m/min





  Rack Profile Drawings







18 Groups Station 22.5KW Rack Beam Roll Forming Machine / Cable Tray Forming Machine

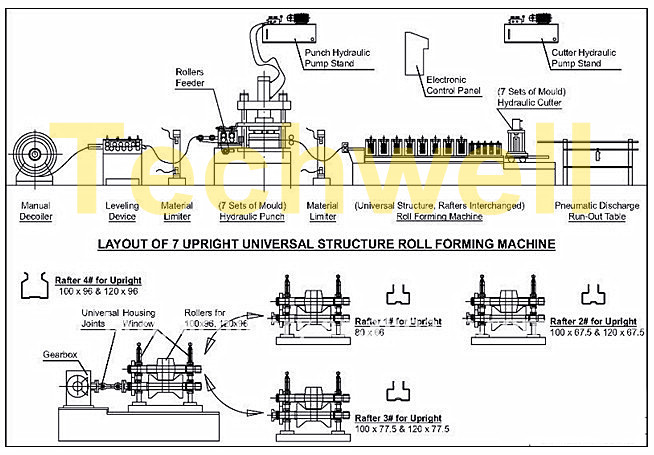

  Working Flow






Decoiler ---- Servo Feeding --- Punching--- Levelling--- Roll Forming ---- Cutting ---- Run out table





18 Groups Station 22.5KW Rack Beam Roll Forming Machine / Cable Tray Forming Machine







  Applications





Storage rack, storage shelf, Steel rack,steel shelf, rack beam





   Our Advantages





  • High Quality
  • Reliable
  • Durable
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

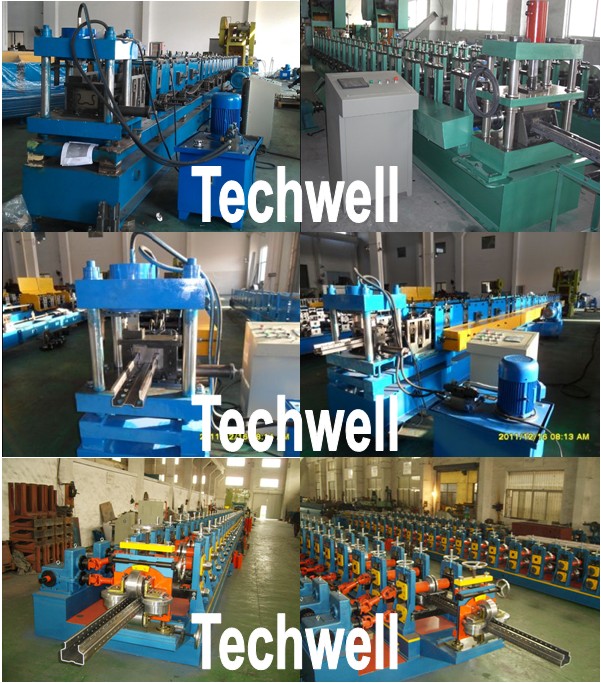

  Machine Pictures









18 Groups Station 22.5KW Rack Beam Roll Forming Machine / Cable Tray Forming Machine

18 Groups Station 22.5KW Rack Beam Roll Forming Machine / Cable Tray Forming Machine









  Factory Pictures







18 Groups Station 22.5KW Rack Beam Roll Forming Machine / Cable Tray Forming Machine

18 Groups Station 22.5KW Rack Beam Roll Forming Machine / Cable Tray Forming Machine

18 Groups Station 22.5KW Rack Beam Roll Forming Machine / Cable Tray Forming Machine









18 Groups Station 22.5KW Rack Beam Roll Forming Machine / Cable Tray Forming Machine







  Certificate







18 Groups Station 22.5KW Rack Beam Roll Forming Machine / Cable Tray Forming Machine
