1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles

1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles

   A). Summary of Cable Tray Roll Forming Machine

1) This cable tray roll forming machine adopt coil production material to form CT600X90 / 500X90 / 300X90 cable tray Profiles through 5 Ton hydraulic decoiler, Leveling, Servo feeding, Hydraulic Punching Machine, Main roll forming part, Post-cutting, hydraulic station, PLC control system and Non-power type support table.

2) The whole machine adopt PLC control, AC speed control by frequency inverter technology, to realize continuous auto production, which is the best desired machinery in steel structure and metal cold roll forming machinery industry.

3) Working Speed: about 0-15 m/min ( excluding punching & cutting time);

   B). Cable Tray Profiles

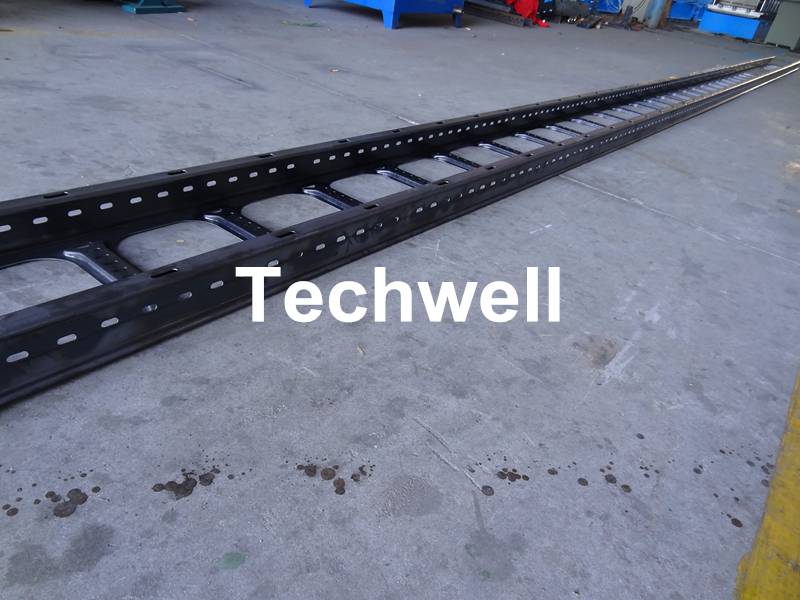

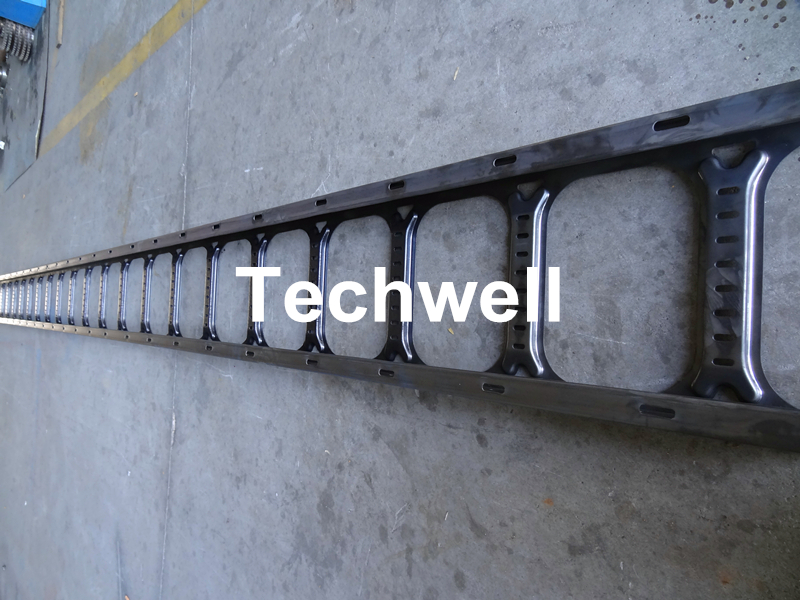

   C). Finished Cable Tray Profile Sheets

   D). Main Specifications

1) Forming material thickness: 1.5-2.0mm

2) Forming material type: GI or Carbon Steel

3) Machine Frame: high grade steel welded and tempering treatment

4) Forming Speed: 0-15m/min excluding punching / cutting time

5) Forming Motor: ≈15KW

6) Width adjustable motor ≈1.5KW

7) Size adjustment: electrical power adjustment

8) Drive type: Chain Drive

9) Shaft Material: 40Cr high grade Steel tempering treatment (HB220-260)

10) Shaft Diameter: Φ 70mm

11) Bearing: HRB bearing ( Top Chinese brand )

12) Roller Material: high grade GCr15 steel, and roller surface with hard chrome ≥ 0.05mm

13) Forming Station: ≈ 18 stations

14) Finished profile straightness tolerance ≤±1.5mm/10m

15) Finished profile angle tolerance ≤±1.5 degree/10m

   E). Layout of Cable Tray Roll Forming Machine

   F). Main Components

   G). More Pictures of Cable Tray Roll Forming Machine
