PLC Frequency Control Steel Hat Channel Roll Forming Machine With 0-15m/min Forming Speed
Description of Steel Hat Channel Roll Forming Machine
- Metal steel hat channel have become a competitive and widely used product in the building industry giving a fire proof and easily erected system for partitioning and various other uses. The component parts of the system are ideal rollform applications.
- There are many kinds of profiles of the steel hat channel as the different market has the different requirements, we design and produce the forming machine according to clients’ drawings or samples normally.
Main Components of Hat Channel Roll Former
- Decoiler / Uncoiler--------------------------------------------------------------------------1 Unit
- Pinch Feeding & Leveling-----------------------------------------------------------------1 Unit
- Punching--------------------------------------------------------------------------------------1 Unit
- Main Roll Forming Machine---------------------------------------------------------------1 Unit
- Cutting to Length----------------------------------------------------------------------------1 Unit
- Hydraulic Station-----------------------------------------------------------------------------1 Unit
- PLC Computer Control Board-------------------------------------------------------------1 Unit
- Runout Table---------------------------------------------------------------------------------1 Unit
Main Technical Parameters of Hat Channel Roll Forming Machine
| Thickness of sheet | 1.5-3.0mm |
| Coil width | Custom-made |
| Material | GI, Carbon steel |
| Decoiler / Uncoiler | Manual or hydraulic decoiler |
| Feeding rollers | 4 rollers |
| Leveling rollers | 7 Rollers ( upper 3 rollers, bottom 4 rollers ) |
| Punching type | Hydraulic punching |
| Punching die | Cr12Mov, quenched, HRC58-62 |
| Forming stations | 14 stations (Depend on profiles) |
| Roller material | GCr15 steel, HRC58-62 |
| Diameter of shaft | 80mm |
| Shaft material | High grade 45# steel |
| Drive type | Chain transmission |
| Forming speed | Chain transmission |
| Main power | 15KW |
| Cutting type | Hydraulic cutting |
| Cutting blade | Cr12Mov, quenched |
| Cutting tolerance | 10m+/-1.5mm |
| Encoder | OMRON Brand |
| PLC | PANASONIC Brand or Custom-made |
| Hydraulic power | 7.5KW |

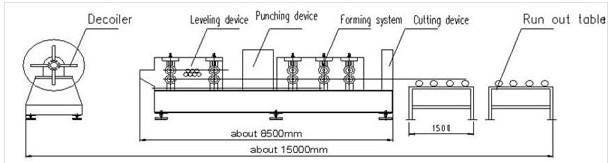

Flow Chart of Hat Channel
Manual Decoiler ---- Feeding guide & Leveling Device ---- Punching------Roll Forming ---- Cutting ------
Run out table

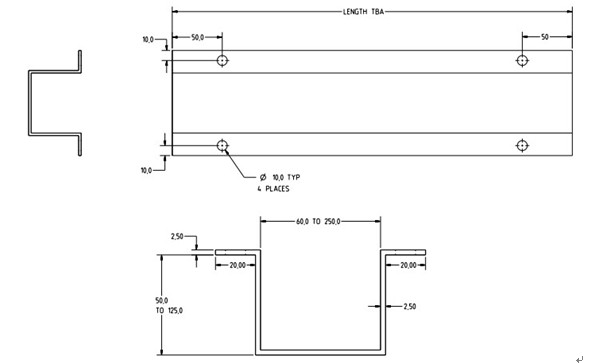

Hat Channel Roll Forming Machine Reference Drawing
Applications
Top Hat Channel, Furring Channel, Hat Channel, Ridge Channel, Top Furring Channel...

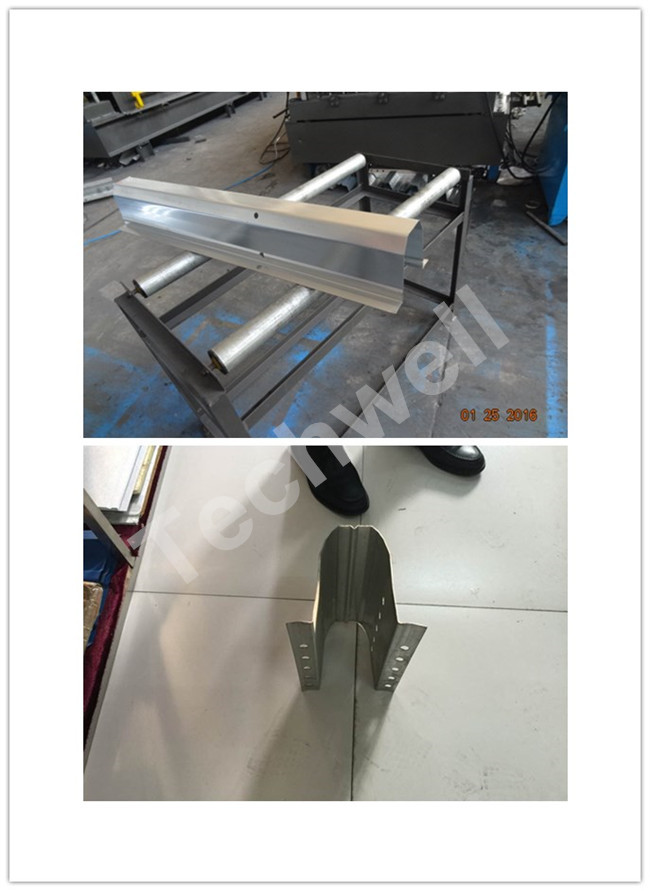

Output Table Products
Competitive Advantages
1. Durable and widely used products
2.Simple to operate when assemble
3.Direct manufacturer, provide with high quality and best price.
4.Provide sample in free.
5.Products and design solution supplied fast and freely
6.Best design oriented for your special requirements
More Machine Pictures
