Cr12 Automatic Galvanized Steel Sheet Floor Deck Forming Machine, Decking Sheet Roll Former
Introduction of Steel Floor Deck Forming Machine, Decking Sheet Roll Former
- The metal deck produced by floor deck forming machine has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mould plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.
- We also can do a custom roll forming machine, i.e. We can design the machine according to your specification and profile drawing.
- One roll forming machine only can produce one profile.
Main Components
- Decoiler / Uncoiler-----------------------------------------------------------1 Unit
- Feeding Device--------------------------------------------------------------1 Unit
- Main Roll Forming Machine------------------------------------------------1 Unit
- Hydraulic Cutting Device---------------------------------------------------1 Unit
- Hydraulic Station------------------------------------------------------------1 Unit
- PLC Computer Control-----------------------------------------------------1 Unit
- Output Table------------------------------------------------------------------1 Unit
Main Specifications of Floor Deck Forming Machine
| Raw material | Galvanized steel sheets with strength 325Mpa |
| Material Thickness | 0.8-1.2mm |
| Material Width | 1220mm (depend on profile) |
| Decoiler | Manual or Hydraulic type |
| Roller stand | about 24 stations (Depend on final design) |
| Shaft diameter | 90mm |
| Roller material | Gcr15 steel, quenched and heated process, HRC58-62 |
| Shaft material | First grade 45# steel, heated and quenched |
| Main motor power | 22KW |
| Hydraulic station power | 3.0KW |
| Forming speed | 10-12m/min |
| Cutting type | Hydraulic cutting |
| Blade material | Cr12 quenched treated |
| Hydraulic pressure | 10-12Mpa |
| Controlling system | PLC |
Working Flow of Floor Deck Roll Former
Decoiler ---- Feeding guide Device ---- Roll Forming ---- Cutting Device ---- Support Table
Reference Profile Drawing
Applications
Steel floor deck, metal deck, steel deck, metal decking sheet, steel structure floor deck...
Competitive Advantages
1. Durable and widely used products
2.Simple to operate when assemble
3.Direct manufacturer, provide with high quality and best price.
4.Provide sample in free.
5.Products and design solution supplied fast and freely
6.Best design oriented for your special requirements

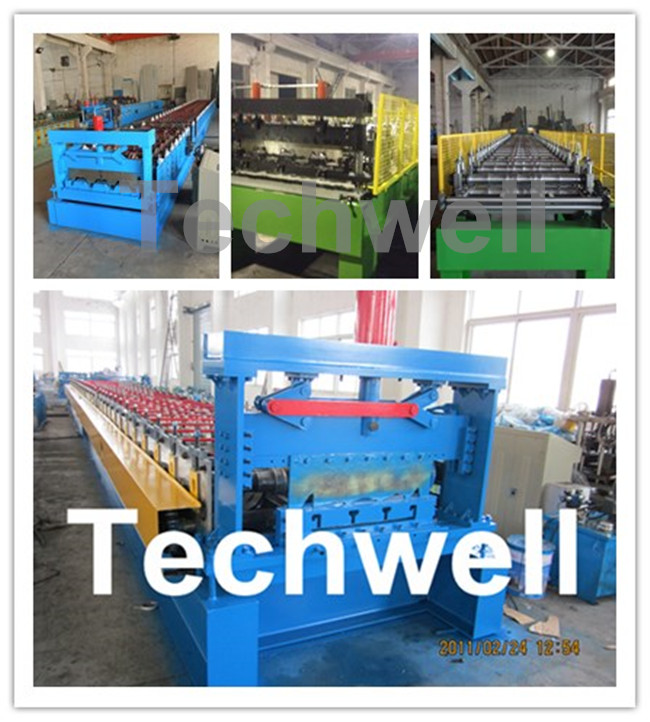

More Floor Deck Reference Machine Pictures
