Minimalist Metal Roof Tile Roll Forming Machine With 18 Forming Stations

Minimalist Metal Roof Tile Roll Forming Machine With 18 Forming Stations

   Technical Specifications

• Material thickness: 0.3-0.7mm,Color Steel, Galvanised coil
• Material width: depend on customer’s requirement
• Decoiler Type: manual or automatical type ( depend on customer’s requirement )
• Weight Capacity Of Decoiler: 5 Ton
• Main Motor Power: 5.5 Kw
• Hydraulic Motor Power: 5.5 Kw
• Forming Station of Metal Roof Tile Roll Forming Machine: 13-18 ( depend on profile drawing )
• Material of Roller: High grade 45# forge steel, Polished and coated with 0.05mm Chrome Surface.
• Main Axis Material: High grade 45#, quenched and heat treatment.
• Axis Diameter: ¢ 75mm
• Working Speed: 0-5 m/min
• Transporting Type: Chain Transmission
• Heat Treatment of Cutting Blade: HRC 50-60
• Type of Cutting: Hydraulic cutting, machine stop to cutting.
• Material Of Cutting Blade: C r 12
• Heat Treatment of Cutting Blade: HRC 50-60
• Machine Frame stand: Welded structural steel
• Thickmess of Fame Steel: 18mm
• Electrical Control: PLC Frequency Control System with touch screen
• PLC: PANASONIC Brand
• Encoder: OMRON Brand
• Transducer: YASKAWA Brand
• Machine Weight: about 7.5 Ton

   Main Parts

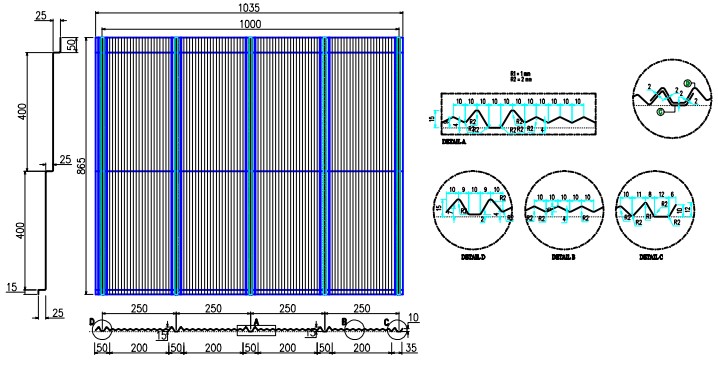

   Tile Profile

   Process Flow

Decoiler ---> Fedding Guide ---> Roll Forming ---> Pressing ---> Cut-to-length ---> Run out table

• This Roof Tile Roll Forming Machine can rollform metal roof tiles. After roll formed by this tile roll forming machine, the surface of metal tile is very smooth and beautiful without any scratch on the surface of tile profile sheets.
• The Steel Roof Tile Roll Forming Machine is with fully automatic control system with PLC.
• Length, quantity of sheets is adjustable.
• Rollforming process: Decoiler, Rollforming, Pressing & Cut to length.
• Easy operation: Key in the length and quantity on the control panel.
• 1 Year warranty, lifelong time service.
• We also can do a custom roll forming machine, we can design machines according to your specifications and profile drawings, all our machines are customized.

   Advantage of TECHWELL

• High Quality
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience
• Copra designing software
• 5-8 technicians every month specially do international installation and debugging.
