Name: 13 Forming Stations Roller Shutter Door Cold Roll Forming Machine With Manual Decoiler
Brand: TECHWELL
Price: 1 USD

Place of Origin : China

Brand Name : TECHWELL

Certification : CE

Model Number : TW-RSD85

MOQ : 1 Set

Price : Contact Us

Packaging Details : Standard packing

Delivery Time : 55-65 working days

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Product Profile : Rolling Shutter Door Slat Profile

Material Thickness : 0.8-1.0mm

Material Type : Galvanized

Forming Station : 15

Roller Material : High Grade 45# Steel with hard chrome

Cutting Type : Hydraulic Cutting

Contact Now

13 Forming Stations Roller Shutter Door Cold Roll Forming Machine With Manual Decoiler

Summary of Roller Shutter Door Roll Forming Machine

Coil Material	Thickness	0.5-1.2mm or 1.5-2.5mm
	Coil width	custom-made
	Yield Strength	250-350Mpa
	Material	GI. or color steel
Decoiler / Uncoiler	Coil Width	Custom-Made
	I.D	508-610mm
	O.D	Max. 1500mm
	Coil Weight	2-3Ton
Roll Forming Machine	Forming Stations	13 Stations ( Depend on Profiles )
	Roller material	GCr15 steel
	Diameter of shaft	75mm
	Shaft material	High grade 45# steel
	Drive type	Chain transmission
	Forming speed	0-15m/min
	Main power	4KW or 5.5KW
Cutting	Cutting type	Hydraulic cutting or Round saw cutting
	Cutting power	3KW
	Cutting Tolerance	10m+/-1.5mm
	Encoder	OMRON Brand
Electrical control	PLC	PANASONIC Brand or Custom-made
	Inverter	YASKAWA Brand or Custom-made
	Touch screen	MCGS Brand or Custom-made
	Operation type	Touch screen & Button
Hydraulic Station	Hydraulic station	Famous Chinese brand
Runout Table	Table type	Simple nonpower type
Runout Table	Function	To support the finished panels

Main Components of Rolling Shutter Door Slat Roll Forming Machine

Shutter Door Slat Profile Drawings

13 Forming Stations Roller Shutter Door Cold Roll Forming Machine With Manual Decoiler

TECHWELL Advantage

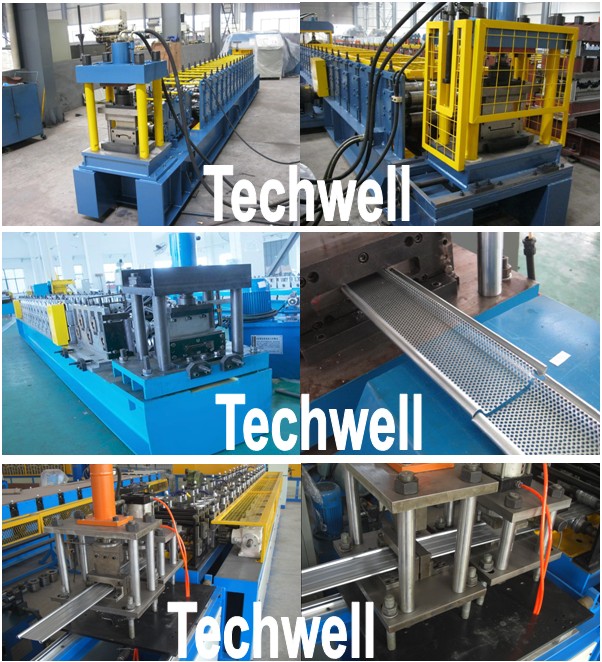

Roller Shutter Door Slat Roll Forming Machine Photos

13 Forming Stations Roller Shutter Door Cold Roll Forming Machine With Manual Decoiler
